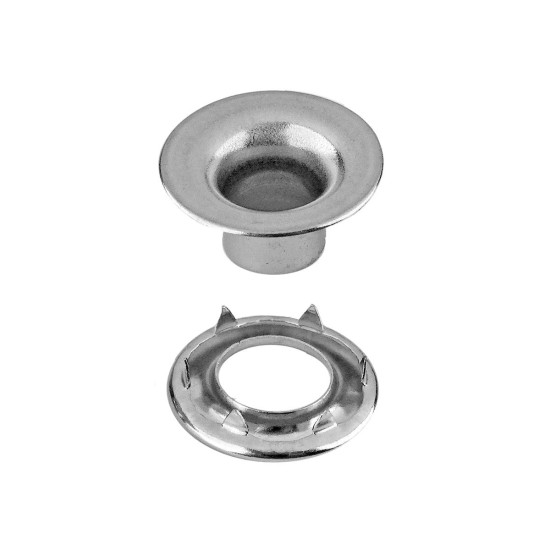

Pro Series 305 SS Rolled Rim Grommet & Spur Washer - #0L

Stimpson’s #0L Pro Series 305 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. It has the same dimensions as Stimpson's #0 size except with a longer barrel. Stimpson’s #0L Pro Series rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose 305 alloy grommet and spur washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, parachutes, safety harnesses, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #0L Pro Series rolled rim grommets and spur washers ensuring installation runs smoothly and efficiently.

- Material: 305 Stainless Steel

- Grommet (inches):

• Hole Size: 9/32"
• Flange Diameter: .670"
• Length Under Flange: .240"
• Metal Thickness: .016"

- Washer (inches):

• Inside Diameter: .345"
• Outside Diameter: .645"
• Metal Thickness: .016"

- Industries: Industrial Fabrics, Parachutes, Safety Harnesses, all other heavy-duty applications.
