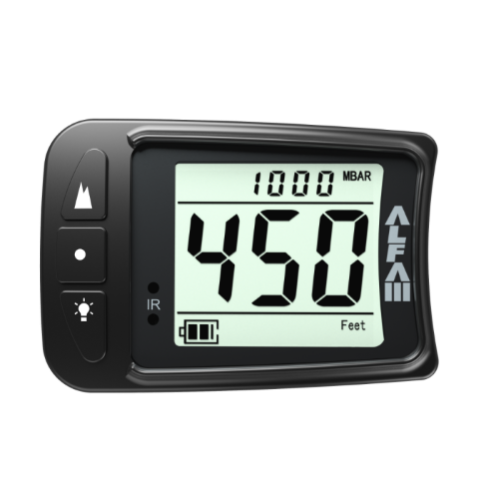

ALFA 3

Made from aircraft-grade aluminum, the ALFA 3™ is the next evolution in digital military visual altimeters, delivering durability, accuracy, and performance to the troops. Paired with the ECHO 3™, it creates a complete altitude awareness system.

Using the ALTISET II™, jumpmasters and mission commanders can preset the mBar setting across a group or entire load of ALFA 3™ altimeters via IR, allowing for easy adjustment of altitude offsets between takeoff and landing zone elevations.

ALFA 3™ comes with a velcro hand mount.

What's new in ALFA 3™?

The ALFA 3™ includes all the features of the ALFA™, plus a range of new features designed to improve power efficiency, usability, and training.

• High-Efficiency Backlight - Adjustable, uniform backlighting delivers controlled output with over 90% reduction in power consumption.
• Accelerometer Power-On - Accelerometer technology automatically powers on the device and display from low-power states.
• Smarter Power Management - Automatic display shutoff, plus Economy and Automatic Modes help conserve power through intelligent shutoff or low-power standby.
• Time Under Canopy - View the time under canopy for a convenient in-flight reference.
• Simulator Mode - Supports real-time training for both students and experienced skydivers.
• EU or US Date & Time - Select the date and time format for EU or US conventions.
• Quick Off - Provides a fast and convenient way to shut down the ALFA 3™.
• Everything You Value in the ALFA™ - The ALFA 3™ retains the trusted ALFA™ foundation while adding smarter power management and new functionality for training and everyday use.

Core Features

• Large, high-contrast, non-flicker LCD
• Adjustable high-efficiency backlight with uniform, controlled output
• Waterproof and shock-resistant aircraft-grade aluminum case
• Impact-resistant hardened glass
• Quick access to essential functions
• Automatic calibration to local elevation

User Controls and Settings

• Set date and time in EU or US format
• User-settable jump counter
• Displays altitude in in FEET or METERS
• Display logbook speeds in MPH or KMH
• Display turns off automatically to save power
• Economy and automatic modes for shutoff or low-power standby
• Remote settings control via Altiset II™

Flight and Performance Functions

• Precise, real-time altitude to 40,000 feet MSL
• Accelerometer enables automatic device and display power-on from low power states
• Altitude offset for varying landing zones
• Time display available under canopy
• Simulator mode to aid in real time training for students and experienced skydivers

Jump Data and Logging

• Daily and total jump counters
• Logbook capacity: up to 200 jumps
• Stores detailled data for the last 200 jumps: Date and time, Exit and opening altitudes, Frefall time,  Max and average speed
• Stores up to 10 minutes of data from the last jump

Specs

• Dimensions: 64 × 44 × 15 mm (2 1/2 × 1 3/4 × 9/16 in)
• Weight: 70 g (2.47 oz)
• LCD viewing area: 34 × 29.5 mm (1 5/16 × 1 3/16 in)
• Long lasting RENATA CR-2325 batteries included

LB Altimeters only recommends RENATA brand batteries for the ALFA 3™
