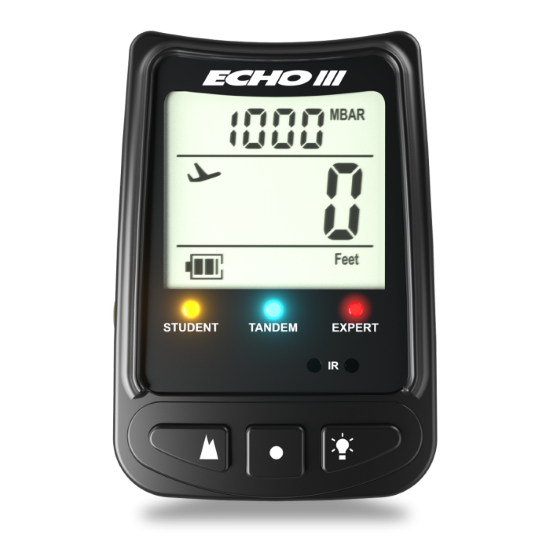

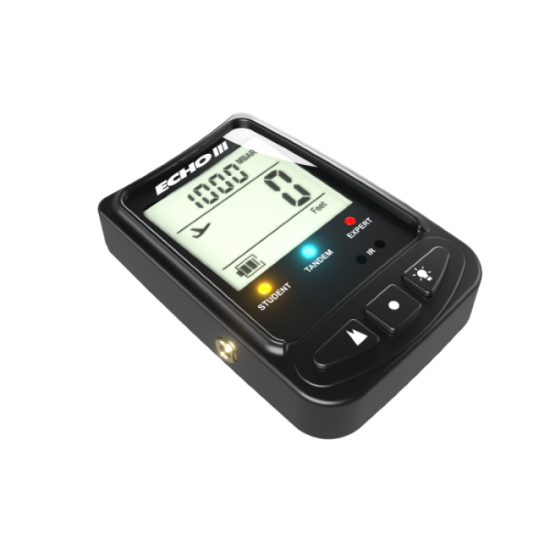

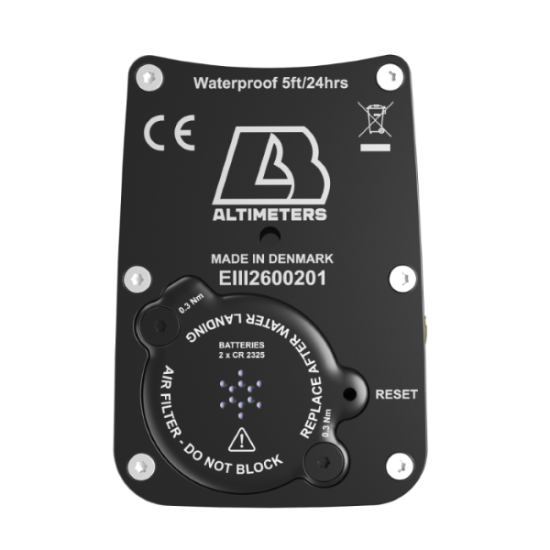

ECHO 3

Made in aircraft grade aluminium, ECHO 3™ is a waterproof audible military altimeter. ECHO 3™ takes durability, superior engineering and accuracy to the troops. 3 warning banks, each with 4 warnings, only accessible via a code. Paired with the ALFA 3™ it makes the perfect altitude awareness system.

Using the ALTISET II™, jumpmasters and mission commanders can preset the mBar setting and warning altitudes across a group or entire load of ECHO 3™ altimeters via IR, allowing for easy adjustment of altitude offsets between takeoff and landing zone elevations.

Warnings

• 4 Climb to Altitude warnings with settings up to 39,900 feet
• 4 High Speed warnings with settings up to 39,900 feet
• 4 Canopy Descent and Low Speed warnings with settings up to 39,900 feet
• Canopy guide tones, featuring a unique series of beeps between the 3rd and 4th canopy descent warning altitudes that increase in tempo as you approach the 4th warning altitude
• Choose between 1, 2, 3, or 4 Climb to Altitude, Freefall and Canopy warnings
• Select between 9 different pitch levels
• User selection of pre-set modes: Student,  Tandem, Expert

Functions and Features

• Integration Port for external speaker and third-party communication system support
• Precise, real-time altitude to 40,000 feet MSL
• Displays current altitude during climb to altitude
• Automatic calibration to local elevation
• Set altitude in 10 FEET or 10 METER intervals
• Altitude offset for jumps with different takeoff and landing elevation
• Super User access to prevent unauthorized changes to warning settings
• Waterproof and shock-resistant aircraft-grade aluminum case
• Impact-resistant hardened glass
• Easy to read LCD for quick access to alarms and settings
• High-efficiency backlight with uniform, controlled output
• Quick access to essential functions
• IR access functionality, to use with optional ALTISET II™ Remote Control

Specs

• Dimensions: 64 × 44 × 15 mm (2 1/2 × 1 3/4 × 9/16 in)
• Weight: 68 g (2.40 oz)
• LCD viewing area: 34 × 29.5 mm (1 5/16 × 1 3/16 in)

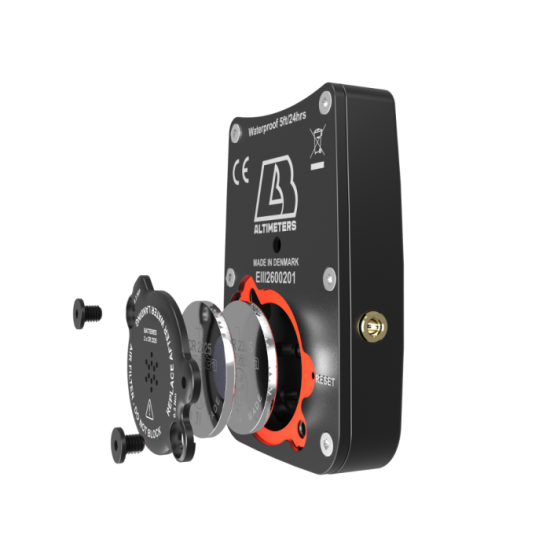

• Long lasting RENATA CR-2325 batteries included

LB Altimeters only recommends RENATA brand batteries for the ECHO 3™.
